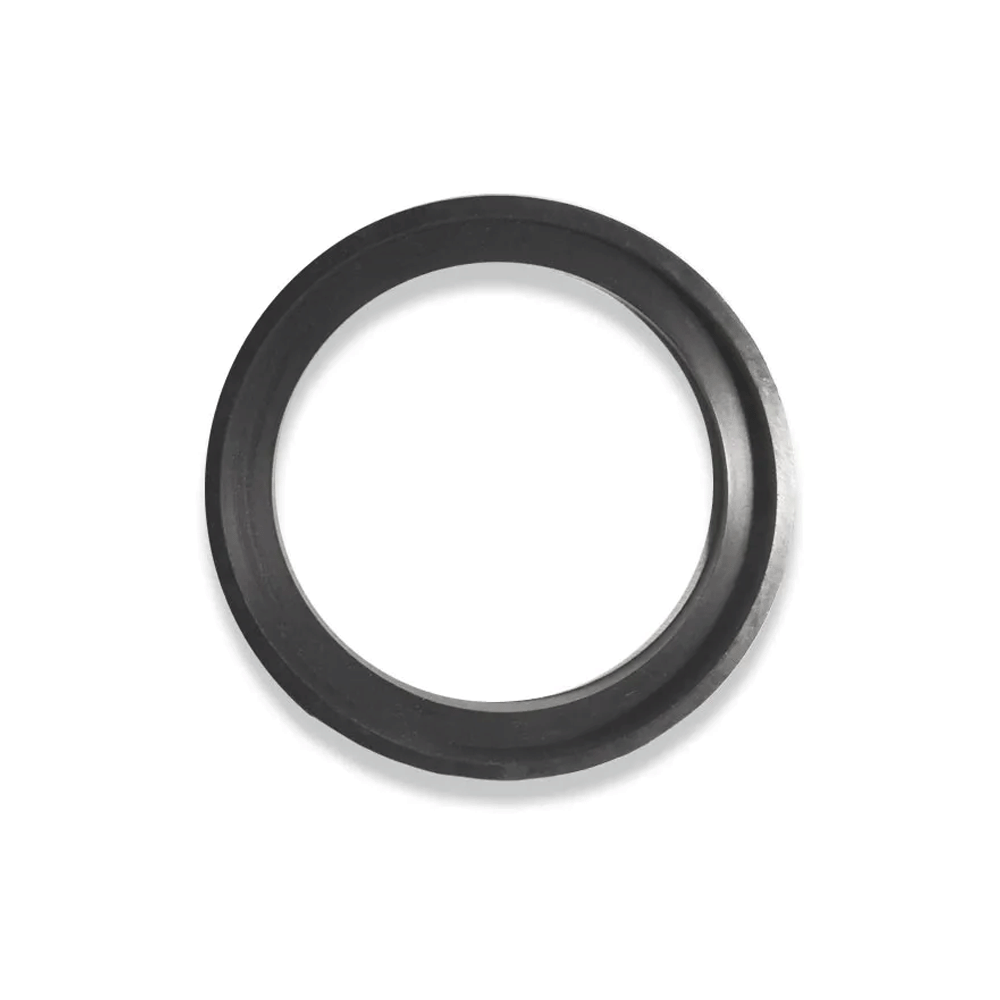

John Perry Gaskets (40JP)
- John Perry Connection Style Gaskets
- Creates Leak-Proof Connection Between John Perry Flanges
- Available in Sizes from 1″-4″ in a Variety of Materials
John Perry Gaskets (40JP)
John Perry fittings utilize a clamp-style mechanism similar to Tri-Clamp, but feature a different ferrule profile. They are especially popular in older production facilities or legacy lines, though they remain relevant in certain modern applications.
Gasket Dimensions
| Size | Outside Diameter | Inside Diameter |
|---|---|---|
| 1" | 1.21" | 0.90" |
| 1 1/2" | 1.80" | 1.40" |
| 2" | 2.19" | 1.89" |
| 2 1/2" | 2.65" | 2.37" |
| 3" | 3.19" | 2.85" |
| 4" | 4.29" | 4.38" |
Why They Matter:
- Legacy System Compatibility: If you’re dealing with equipment that has been operational for decades, John Perry fittings could be the most straightforward choice for replacement or expansion parts.
- Easy Assembly: The clamp design allows for quick assembly and disassembly, reducing downtime when cleaning or reconfiguring.
- Durable Construction: Often made from high-grade stainless steel, John Perry fittings are built to withstand rigorous cleaning and sanitizing protocols.
Key Benefit:
John Perry fittings keep legacy systems running smoothly without extensive retrofitting, saving you both time and resources in mature production environments.
Additional information
-
I need the O.D. of these gaskets
-
Q I need the O.D. of these gasketsA
Gasket Dimensions
Size Outside Diameter Inside Diameter 1" 1.21" 0.90" 1 1/2" 1.80" 1.40" 2" 2.19" 1.89" 2 1/2" 2.65" 2.37" 3" 3.19" 2.85" 4" 4.29" 4.38"
